MAX5136AGTG+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX5136AGTG+
Datasheet:
Description:

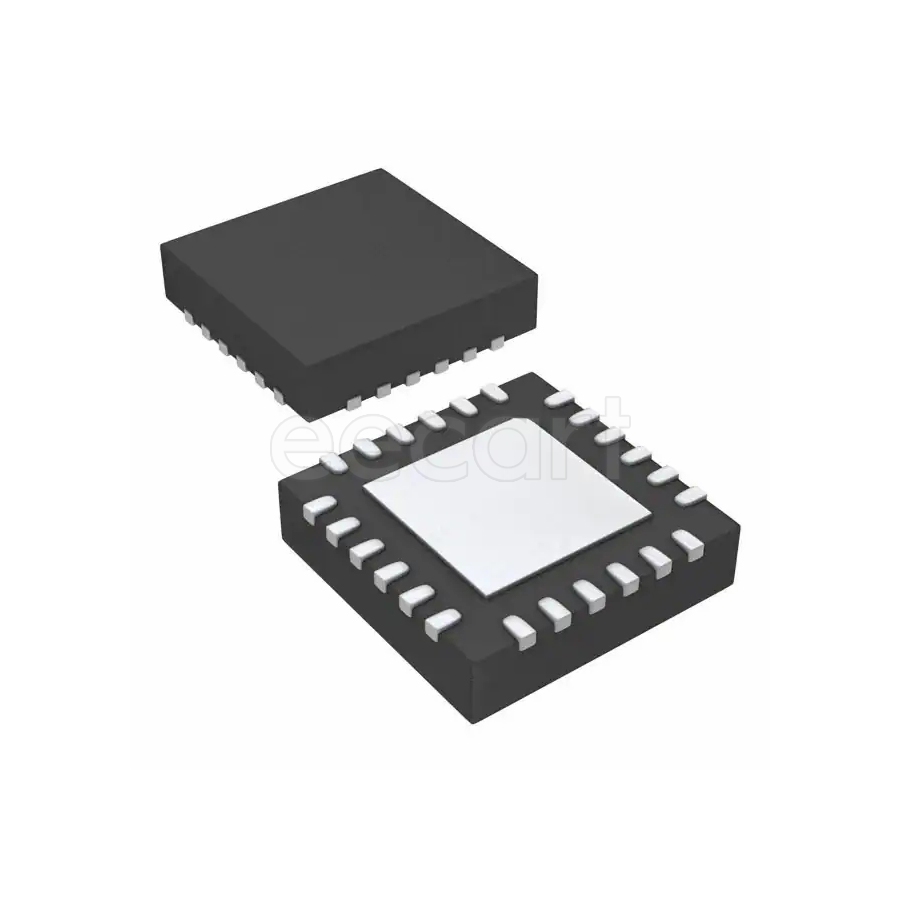

Digital to Analog Converters (DACs) QFN-24 SMD/SMT number of channels:2 number of bits:16 Number of D/A Converters:2
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 24 |
| Radiation Hardening | No |
| REACH SVHC | Unknown |
| Interface | SPI, Serial |
| Output Type | Voltage |
| Max Power Dissipation | 2.22 W |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Number of Bits | 16 |
| Supply Type | Analog, Digital |
| Number of DAC Channels | 2 |
| Integral Nonlinearity (INL) | 10 LSB |
| Number of Converters | 2 |
| Settling Time | 5 µs |
| Nominal Supply Current | 3.6 mA |
| Resolution | 2 B |
| Number of D/A Converters | 2 |
| RoHS | Compliant |
| Packaging | Tube |
| Number of Channels | 2 |
| Analog Supply Voltage | 2.7 V to 5.25 V |
| Max Digital Supply Voltage | 5.25 V |
| Min Digital Supply Voltage | 2.7 V |
| Reference Type | External, Internal |
| Interface Type(Data Interface) | SPI |
| Core Architecture(core/core processor) | Resistor-String |
Stock: 745
Distributors
pcbx
pcbxUnit Price$6.28184
Ext.Price$6.28184
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.28184 | $6.28184 |
| 10 | $4.90132 | $49.01320 |
| 25 | $4.64858 | $116.21450 |
| 50 | $4.40887 | $220.44350 |
| 100 | $4.18152 | $418.15200 |
| 300 | $3.96585 | $1189.75500 |
| 500 | $3.87809 | $1939.04500 |
| 1000 | $3.79229 | $3792.29000 |
